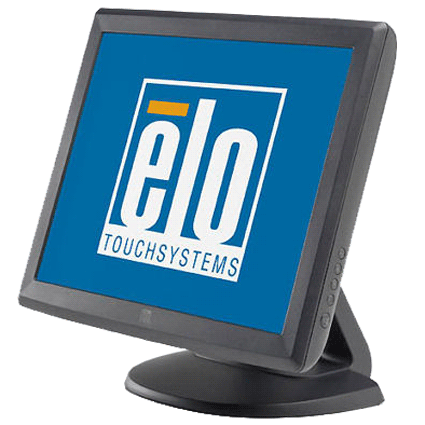

Elo 1515L

The 1515L touch monitor is a cost-effective solution for customers with system integration needs. It combines the award winning touchscreens of Elo with intuitive monitor design and affordability. The 1515L supports multiple touch technologies including AccuTouch (Resistive), Acoustic Pulse Recognition (APR), and IntelliTouch (Capacitive). Its optimal screen resolution of 1280 x 1024 displays crisp graphics while still supporting other resolution configurations.

Physical Specifications

1. Dimensions (W x D x H): 13.8 x 12.2 x 6.9
2. Weight: 10.6 lbs
3. Color: Dark Grey
4. Display: 15 Active Matrix TFT LCD
5. Resolution:
   1. 1024 x 768 at 60, 65 Hz (Sun), 70 or 75 Hz
   2. 832 x 624 at 75 Hz (Mac)
   3. 800 x 600 at 56, 60, 72 or 75 Hz
   4. 720 x 400 at 70 Hz
   5. 720 x 350 at 70 Hz
   6. 640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz
6. Contrast Ratio: 400:1
7. Interface: D-Sub 15-Pin VGA for Video ; RS-232 Serial or USB for Touch Screen
8. Mounting Options: Removable Base, 75 mm VESA Mount

Environmental Specifications

1. Operating Temperature: 32%deg F to 104%deg F
2. Storage Temperature: -40%deg F to 140%deg F
3. Humidity: 10% to 90% non-condensing

Warranty:
3 year

Agency Approvals
UL/cUL, FCC, CE, TÜV-GS, VCCI, IC, C-Tick
